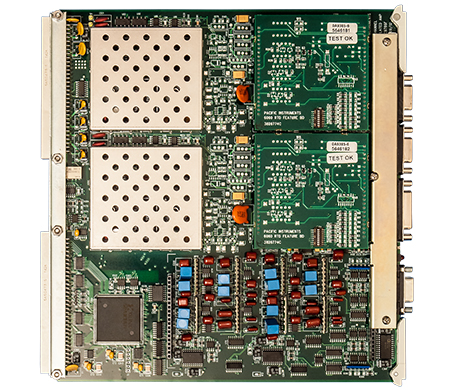

Measurement Type
|
|
Bridge
ICP/IEPE
RTD
Strain Gage
|
|
|
|
Analog Bandwidth
|
|
50 kHz
100 kHz
|
|
|
|
Excitation/Transducer Power
|
|
Current
ICP
Voltage
|
|
|
|
Filter
|
|
6-Pole
|
|
|
|
Sample Rate
|
|
Up to 200 kS/s
|
|
|
|
Analog Output
|
|
Buffered Analog Output
|
|
|
|
|
|
|
|
Configuration
|
|
Input configuration based on installed Features Cards. Features cards available for Bridge, IEPE and RTD. Other features cards available upon request.
|
|
|
|
|
|
|
|
Bridge Configuration
|
|
2 channels, 2 to 10 wire inputs. Programmable bridge completion for full and half bridges and 120 Ohm and 350 Ohm quarter bridges.
|
|
|
|
Bridge Balance
|
|
Automatic by program control. Balance accuracy ±0.05% of range, ±1 mV RTO. Stability ±0.02% for 8 hours, ±0.005%/ºC. Supplied range is 2 mV/V (350 Ohm bridge).
|
|
|
|
|
|
Voltage Excitation / Transducer Power
|
|
|
|
Voltage Excitation
|
|
Programmable from 0.1 to 20 Volts with 0.5 mV resolution. Calibrated 2-Volt steps ±0.1%. 50 mA limited to 70 mA maximum.
|
|
|
|
Voltage Excitation Regulation
|
|
Each channel individually regulated. ±0.01% over input voltage range and no-load to full-load.
|
|
|
|
Voltage Excitation Stability
|
|
±0.01% for 30 days. Temperature coefficient less than ±0.005%/ºC.
|
|
|
|
Voltage Excitation Noise
|
|
200 µV peak-to-peak, DC to 10 kHz
|
|
|
|
Voltage Monitor
|
|
Excitation voltage or current is read by a program instruction. Accuracy is ±0.2%.
|
|
|
|
|
|
Constant Current Excitation / Transducer Power
|
|
|
|
Current Excitation
|
|
Programmable 0.1 mA to 51.2 mA with 1 µA resolution. Calibrated 5 mA steps ±0.1%.
|
|
|
|
Minimum Compliance
|
|
0.1 to 20 V
|
|
|
|
Current Regulation
|
|
±0.01% or ±0.1 µA for 10% line change.
|
|
|
|
Current Stability
|
|
±0.01% or ±2 µA for 30 days. Temperature coefficient is less than ±0.005% or ±1 µA/ºC.
|
|
|
|
Current Excitation Noise
|
|
2 µA or 5 µV peak-to-peak DC to 10 kHz.
|
|
|
|
Current Monitor
|
|
Excitation voltage or current is read by a program instruction. Accuracy is ±0.2%.
|
|
|
|
|
|
|
|
Input Range
|
|
±2 mV to ±10 Volts full scale, DC or AC coupled.
|
|
|
|
Gain
|
|
Programmable from 1 to 5,000 in 1, 2, 3, 5 steps with ±0.05% accuracy.
|
|
|
|
Gain Stability
|
|
±0.01% for 30 days, ±0.004%/ºC.
|
|
|
|
Gain Linearity
|
|
±0.01% for gains <1,000, ±0.02% for gain 1,000 and higher.
|
|
|
|
Impedance
|
|
50 Megohms, shunted by 500 pF.
|
|
|
|
Input Protection
|
|
±50 Volts, differential or ±350 Volts common mode without damage.
|
|
|
|
Common Mode
|
|
60 dB plus gain in dB to 120 dB for balanced input and 110 dB for a 350 Ohm source unbalance, DC to 60 Hz.
|
|
|
|
CM Voltage
|
|
±10 Volts operating.
|
|
|
|
Zero (Amplifier)
|
|
Automatic zero ±1.0 mV.
|
|
|
|
Zero Stability
|
|
±1 µV/°C RTI, ±0.2 mV/°C RTO or (±1 µV RTI, ±0.2 mV RTO) /°C
|
|
|
|
Source Current
|
|
±5 nA, ±0.05 nA/ºC
|
|
|
|
Noise (10 kHz)
|
|
2.0 µV RTI plus 0.3 mV RTO, RMS.
|
|
|
|
Bandwidth
|
|
100 kHz (-3 dB) for gains 1 to 1,000, 50 kHz (-3 dB) for gains above 1,000.
50 kHz (-3 dB) for gains 1 to 1,000, 20 kHz (-3 dB) for gains above 1,000.
|
|
|
|
Slew Rate
|
|
5 V/µS
|
|
|
|
|
|
|
|
Type
|
|
4 Frequency Six-pole, low-pass Bessel or continuously programmable 4-pole Bessel.
|
|
|
|
Standard Filter
|
|
6062: 4-Frequency 6-Pole Bessel with 150 Hz, 625 Hz, 2.5 kHz, 10 kHz and wideband.
6062HF: 4-Frequency 6-Pole Bessel with 300 Hz, 1.25 kHz, 5 kHz, 20 kHz and wideband.
|
|
|
|
Programmable Filter
|
|
6062: 4-Pole Bessel, continuously programmable 4 Hz to 10 kHz.
6062HF: 4-Pole Bessel, continuously programmable 10 Hz to 20 kHz.
|
|
|
|
Other
|
|
Other filter characteristics and cut offs are available.
|
|
|
|
|
|
|
|
Sample
|
|
±50 ns channel-to-channel time correlation.
|
|
|
|
Resolution
|
|
16 bits, two's complement output.
|
|
|
|
Rate
|
|
6062: Programmable up to 100 kS/s digitizer per channel.
6062HF: Programmable up to 200 kS/s digitizer per channel.
|
|
|
|
Linearity
|
|
±1 1/2 LSB (±0.004%)
|
|
|
|
Continuity
|
|
Monotonic to 15 bits.
|
|
|
|
Alarms
|
|
Two alarms each with upper and lower limits that are programmable from negative to positive full scale. Limits checked on each ADC sample.
|
|
|
|
|
|
|
|
Voltage Substitution
|
|
Voltage substitution, signal from external calibration source is applied to the amplifier input. Programmable attenuator with steps of 1, 0.1 and 0.01, ±0.02% accuracy. Output of the attenuator is provided for calibration.
|
|
|
|
Shunt Calibration
|
|
Shunt Calibration based on capability of Installed Features Card.
FC1: Two steps, single shunt, internal or external.
FC2: Programmable resistive "DAC" shunt, 16-bit resolution.
FC5: Four-step, single shunt, external.
FC11: Four-step, double shunt, external.
|
|
|
|
Zero Calibration
|
|
Amplifier input disconnected and shorted.
|
|
|
|
|
|
|
|
Mounting
|
|
Occupies one slot in Series 6000 enclosures.
|
|
|
|
Connectors
|
|
15-pin inputs, 9-pin outputs, Type D. Mating connectors supplied.
|
|
|
|
Operating Temperature
|
|
0 to +50 ºC
|
|
|
|
|
|
|
|
Ordering Information
|
|
6062 - 2-Ch Transducer Amp, 100kS/s, 4-Freq 6-Pole Bessel
|
|
|
|
|
|
|
|
