Series 6000 Data Acquisition & Control Enclosures

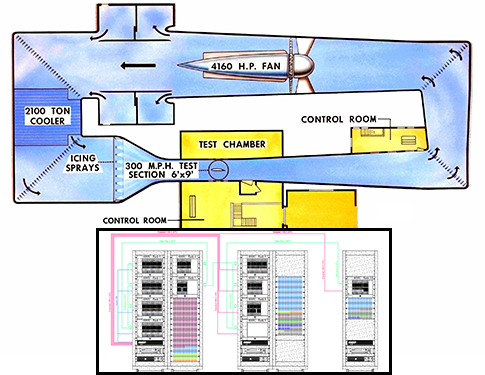

The native interface for the Series 6000 enclosure is USB 2.0 and can be configured for Ethernet. There are many ways to configure a system. Multiple racks can be combined to provide a single larger system or used individually to create smaller, lower channel count installations. The systems can be run locally (near a test cell) or remotely from a control room. This allows the test operators to setup, configure and calibrate the system locally near the test article and remotely while a test is in progress.
Common Features
- Any number or combination of racks
- Simultaneous sampling across all enclosures
- Multiple, distributed system support
- On-board storage for data redundancy
- Distributed sample clock, alarm and calibration Bus
- IRIG A, B or G
- Supports any I/O module in any slot

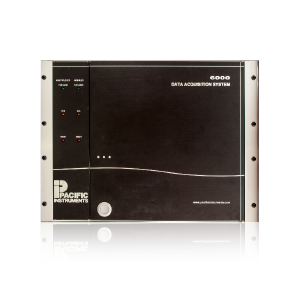

16-Slot USB DAQ Enclosure
Model 6000U
- Enclosure for 16 I/O modules
- Combine up to 32 Enclosures for larger systems
- USB 2.0 interface provides up to 4.8 MS/s aggregate data rate
- Calibration voltage distribution
- Alarm busses to control external equipment
16-Slot USB Rugged DAQ Enclosure
Model 6000U-1
- Enclosure for 16 I/O modules
- Combine up to 64 Enclosures for much larger systems
- USB interface provides up to 4.8 MS/s aggregate data rate
- Calibration voltage distribution
- Higher performance, reliability, ruggedness and lower weight
16-Slot Ethernet DAQ Enclosure
Model 6000E
- Enclosure for 16 I/O modules
- Gigabit Ethernet interface provides up to 4.8 MS/s aggregate data rate
- Calibration voltage distribution
- Alarm busses to control of external equipment

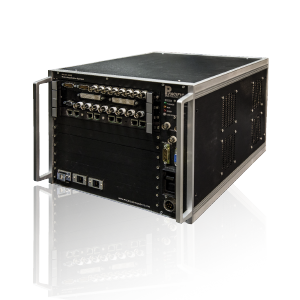

10-Slot USB Mobile DAQ Enclosure
Model 6005U
- Enclosure for 10 I/O Modules
- DC operated for mobile applications
- USB 2.0 Interface provides 4.8 MS/s aggregate data rate
- Optional on-board data storage
8-Slot Ethernet Mobile DAQ Enclosure
Model 6005E
- Enclosure for 8 I/O Modules
- DC operated for mobile applications
- Ethernet Interface provides 4.8 MS/s aggregate data rate
- Calibration voltage distribution

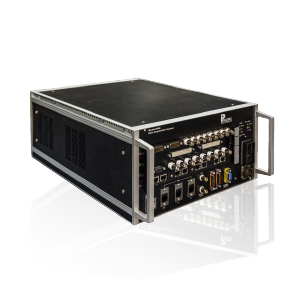

4-Slot USB Desktop DAQ Enclosure
Model 6010U
- Enclosure for 4 I/O modules
- 3U 19-inch Rack or Desktop
- USB 2.0 Interface provides 4.8 MS/s aggregate data rate
- Calibration voltage distribution
4-Slot USB Mobile DAQ Enclosure
Model 6008U
- Enclosure for 4 I/O Modules
- DC operated for mobile applications
- USB 2.0 Interface provides 4.8 MS/s aggregate data rate
- Optional on-board data storage
An Operator’s Workstation is the primary control and data recording point for the Series 6000 System. Typically installed in the control room, the Operator’s Workstation runs PI660 Data Acquisition Software for system setup, calibration, display, recording, distribution and export. Multiple, distributed systems are supported and controlled through a single Operator’s Workstation. A system can even be configured and used over wireless technology, allowing even greater control over the system. For example, a technician can change gain and filter settings on a touch screen tablet style PC while performing system checkouts and test readiness.
Data redundancy is optionally available and mounts on the controller board in each Series 6000 enclosure, creating a redundant recording point for the system. In the unlikely event the Operator’s Workstation or application software fails, data will continue to record in each enclosure and can be recovered from the system post-test.

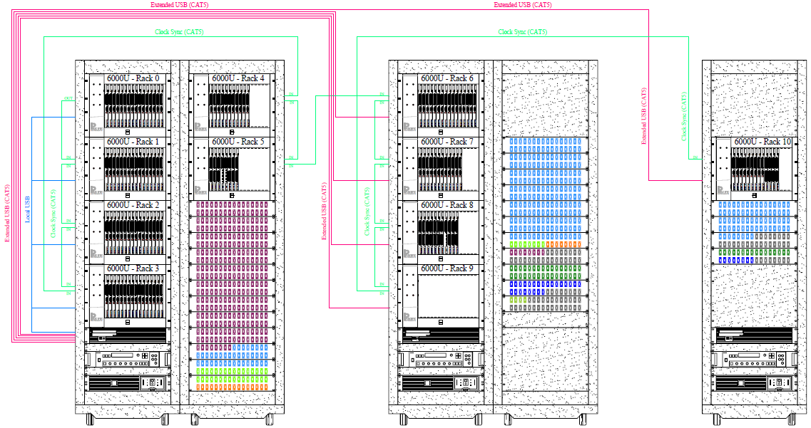

Series 6000 Multi-Rack Distributed System Diagram
