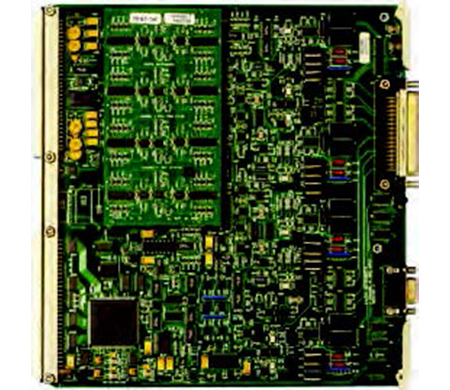

Model 6052, 4-Channel Strain/Bridge Transducer Amplifier - Filter-Digitizer

FEATURES

Programmable input configuration ¼, ½ & full bridge
Programmable excitation with remote sensing
Shunt & voltage calibration
Automatic zero & balance
Gains 1 to 5,000 with 0.05% accuracy
Model 6052: Up to 20kS/s per channel with 16-bit resolution
Model 6052C: Up to 50kS/s per channel with 16-bit resolution
Buffered 10 Volt analog output
Two alarms with programmable upper & lower limits

DESCRIPTION

The 6052 input module has four channels of high performance signal-conditioning amplifier-digitizers for strain gages and bridge transducers. Each channel has programmable excitation with remote sensing, voltage calibration, local or remote shunt calibration, programmable gain instrumentation amplifier and four-pole low pass filter. The high level outputs are multiplexed and digitized to 16 bits then output to the 6000 data bus. In addition to the digitized output, each channel provides a continuous, calibrated analog output.

The 6052 is used with quarter, half and full bridge transducers, potentiometers and low-level voltage signals in demanding applications such as load control. The standard 6052 filter is a four-pole or six-pole filter with programmable cutoff frequency from 4 Hz to 5 kHz in 1 Hz steps and the 6052C is a four-pole filter with programmable cutoff frequency from 10 Hz to 20 kHz.

Voltage substitution using an external voltage standard is provided for traceable gain calibration. Internal or external shunt calibration is provided for transducer calibration. Transducer balance, zero and gain calibration are automatic. Two programmable alarms with upper and lower limits are checked for each digitized output. The high-level analog outputs provide a means to independently monitor or record each channel.

Series-6000-Modules_6052.pdf (134.56 KB)

OVERVIEW

Measurement Type		Bridge Strain Gage

Excitation/Transducer Power		Voltage

Analog Output		Buffered Analog Output

Input

Configuration		4 channels, 2 to 8 wire with guard shield. Bridge configuration is programmable for 1/4, 1/2 and full bridge, 120 Ohm and 350 Ohm.

Balance		Automatic by program control. Balance accuracy ±0.05% of range, ±1 mV RTO. Stability ±0.02% for 8 hours, ±0.005%/ºC. Range set by resistor up to 10 mV/V, 2 mV/V (for 350 Ohms) installed.

Excitation/Transducer Power

Voltage Excitation		Programmable from 0-12 Volts in 1 Volt ±0.1% steps, with 3.3 mV resolution adjustment.

Current		50 mA limited to 70 mA.

Regulation		±0.01% for ±10% line and no-load to full-load using remote sensing.

Stability		±0.01%, ±0.005 %/ºC

Excitation Noise		200 µV peak-to-peak.

Monitor		Calibration mode applies excitation voltage to amplifier input.

Amplifier

Gain		Programmable from 1 to 5,000 in 1, 2, 3, 5 steps with ±0.05% accuracy.

Gain Stability		±0.01%, ±0.004%/ºC.

Impedance		50 Megohms, shunted by 1,000 pF.

Protection		Instrumentation amplifier ±50 Volts differential and Common Mode. Bridge ±15 Volts Common Mode.

Linearity (Amplifier)		±0.01% for gains < 1,000, ±0.02% for gains 1,000 and higher.

Common Mode		74 dB plus gain in dB up to 106 dB, DC to 60 Hz for ±10 Volts.

Zero (Amplifier)		Automatic to ±1 µV RTI, ±0.5 mV RTO.

Zero Stability		±5 µV RTI, ±1 mV RTO, ±1 µV/ºC RTI, ±0.2 mV/ºC RTO. Short term: ±2 µV RTI, ±0.4 mV RTO.

Source Current		±25 nA, ±0.01 nA/ºC

Noise (10 Hz)		0.1 µV RMS RTI plus 0.5 mV RMS RTO

Noise (Wideband)		2 µV RMS RTI plus 0.5 mV RMS RTO

Bandwidth (6052)		10 kHz (-3dB) or better

Bandwidth (6052C)		50 kHz (-3dB) for gains 1 to 1,000, 20 kHz (-3dB) for gains above 1,000

Slew Rate (6052)		5 V/uS

Recovery		800 µS to ±0.1% for 10X overload to ±10 V.

Output		Buffered Analog Output, ±10 Volts full scale, wideband or filtered. Accuracy is ±0.05%.

Filter

Type (6052)		Four or Six pole, low pass Butterworth

Type (6052C)		Four pole, low pass Bessel

Frequency (6052)		Continuously programmable 4Hz to 5kHz, 1.25Hz resolution, 3% accuracy

Frequency (6052C)		Continuously programmable 10Hz to 20kHz

Noise		0.5 mV RMS RTO

Other		Other filter characteristics and cut offs available.

Digitizer

Resolution		16-bits, two's complement output.

Sample Rate (6052)		0 to 20 kS/s per channel

Sample Rate (6052C)		0 to 50 kS/s per channel

Digitizer Linearity		±2 LSB (±0.006%)

Continuity		Monotonic to 15 bits.

Alarms		Two alarms each with programmable upper and lower limits and persistence checked on each ADC sample.

Calibration

Shunt		Two steps shunt, internal or external connection, 174k Ohm 0.1% and 357k Ohm 0.1%

Voltage Substitution		Alternate input for external calibration source. Programmable attenuator with steps of 1, 0.1 and 0.01, ±0.02% accuracy. Output of the attenuator is provided for calibration.

Zero Calibration		Amplifier input disconnected and shorted.

Mechanical

Mounting		Occupies one slot in Series 6000 enclosures.

Connectors		Input is 50-pin Type D output is 9-pin Type D.

Operating Temperature		0 to +50 ºC

Ordering Information

6052B-PF4/5K-BU4 - 4-Ch Strain-Bridge, PF 4Hz-5kHz 4-Pole Butterworth, 2-Step Shunt.
6052B-PF4/5K-BU6 - 4-Ch Strain-Bridge, PF 4Hz-5kHz 6-Pole Butterworth, 2-Step Shunt.
6052C-PF10/20K-BE4 - 4-Ch Strain-Bridge, PF 10Hz-20kHz 4-Pole Bessel, 2-Step Shunt, 50ks/s
6052C-PF10/20K-BU4 - 4-Ch Strain-Bridge, PF 10Hz-20kHz 4-Pole Butterworth, 2-Step Shunt, 50ks/s
6052D-PF4/5K-BU4 - 4-Ch Strain-Bridge, PF 4Hz-5kHz 4-Pole Butterworth, 2-Step Shunt, Dual Analog Outputs
6052D-PF4/5K-BU6 - 4-Ch Strain-Bridge, PF 4Hz-5kHz 6-Pole Butterworth, 2-Step Shunt, Dual Analog Outputs
6052-PF4/5K-BU4 - 4-Ch Strain-Bridge, PF 4Hz-5kHz 4-Pole Butterworth.
6052-PF4/5K-BU6 - 4-Ch Strain-Bridge, PF 4Hz-5kHz 6-Pole Butterworth.
