Model 6049, Quad 32-Bit Quadrature Decoder

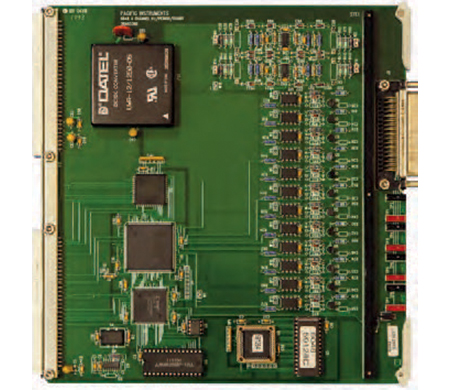

Series 6000 Modules - 6049

FEATURE

  • Four independent 32-bit channels
  • Optic isolated inputs
  • Noise reduction input filters
  • 12 Volt isolated power for inputs



DESCRIPTION



The 6049 is a four-channel input module for use with quadrature encoders. Each channel has optical isolation for the "A", "B", and "Z" inputs. The "A" and "B" quadrature inputs feed a 32 bit up/down accumulator, that may be set or cleared under program control. The up/down polarity for each 32 bit accumulator is programmable. A short debounce filter for the "A", "B", and "Z" inputs can be programmed for 0 to 230 nsec.





OVERVIEW



Measurement Type

Encoder

Digital Inputs (Optic Isolated)



Level (Digital Inputs (Optic Isolated))

Requires 5 Volts at 8 mA to trigger the optic coupled input. Inputs are protected to ±50 Volts.

Isolation

300 V

Frequency (Digital Inputs (Optic Isolated))

DC to 1 MHz

Outputs



Resolution

32-bits

Range



Frequency (Range)

0 Hz to 1 MHz

Count (Range)

0 to 4.295 x 109 or ± 2.147 x 109

Accuracy



Count (Accuracy)

±1 count

Isolated Power



Voltage

12 V

Current

1 Amp maximum.

General



Mounting

Occupies one slot in Series 6000 enclosures.

Connectors

50-pin, Type D. Connector is mounted on the front and the mate is supplied.

Temperature

0 to +50 ºC

Ordering Information



Ordering Information

6049 - 4-Channel, 32-bit Quadrature Decoder Module.
