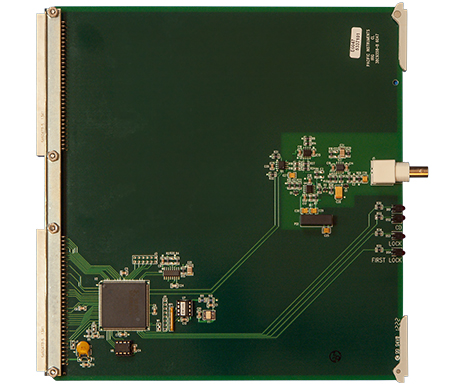

Model 6047, IRIG Time Code Reader
DESCRIPTION
The 6047 IRIG Time Code Reader provides precision time references for measurement data acquired by the 6000 data acquisition system. Time is acquired from time code signals, IRIG A, B or G, applied to the BNC input. Time data is captured by the 6000's sample clock and can be selectively output in the multiplexed data stream with measurement data at any available sample rate. It enables data processing or export software to determine the measurement time of each data point. The 6047 occupies one slot in a 6000 series mainframe or slave enclosure.
The IRIG Time Code Reader derives a 1 MHz clock from the IRIG signal that is accumulated to provide current time with 1 microsecond resolution. Current time is loaded into binary and BCD output registers (days, minutes, seconds, milliseconds and microseconds) by the 6000's sample rate clock assuring that the time recorded matches data sampled by all series 6000 input and output cards.
A stabilized oscillator is disciplined to the IRIG time source. If the time source is lost, the time reader continues to maintain and output time, however time accuracy will be limited by the stability of the local clock.
Using the 6000 digital I/O cards provides a means of recording the time of event inputs or the time an event is output.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
