Measurement Type
|
|
Bridge
ICP/IEPE
Strain Gage
|
|
|
|
Analog Bandwidth
|
|
50 kHz
100 kHz
|
|
|
|
Excitation/Transducer Power
|
|
Current
ICP
Voltage
|
|
|
|
Filter
|
|
8-Pole
|
|
|
|
Sample Rate (Digitizer)
|
|
Up to 200 kS/s
|
|
|
|
Analog Output
|
|
Buffered Analog Output
|
|
|
|
|
|
|
|
Configuration
|
|

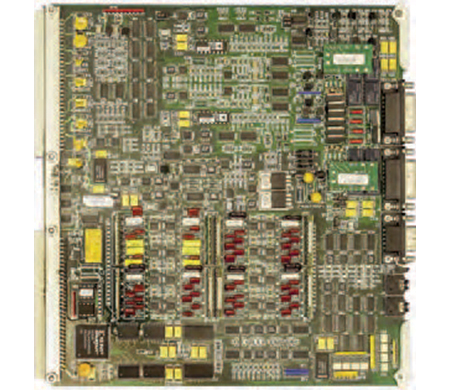

Dual input for Bridge or ICP/IEPE transducers with digitized and analog outputs
|
|
|
|
|
|
|
|
Bridge Configuration
|
|
2 channels, 2 to 8 wire inputs, input (2), excitation (2), excitation sense (2) and shunt calibration (2) with shield. Programmable bridge completion for half bridges and 120 Ohm and 350 Ohm quarter bridges. Other gage resistances by request.
|
|
|
|
Bridge Balance
|
|
Automatic by program control. Balance accuracy ±0.05% of range, ±1 mV RTO.
|
|
|
|
Bridge Stability
|
|
±0.02% for 8 hours, ±0.005%/°C. Range set by resistor up to 25 mV/V, 2.5 mV/V (350 Ohms) installed.
|
|
|
|
Input Impedance (Bridge Input)
|
|
50 Megohms, shunted by 500 pF.
|
|
|
|
Input Protection (Bridge Input)
|
|
±50 Volts differential, ±30 Volts common mode without damage.
|
|
|
|
Configuration (IEPE Input)
|
|
AC-coupled, 2-wire with shield. High-pass <1 Hz.
|
|
|
|
ICP Transducer
|
|
Current source 1 to 20 mA, 6 mA supplied.
|
|
|
|
Input Impedance (IEPE Input)
|
|
100K Ohms
|
|
|
|
Input Protection (IEPE Input)
|
|
±50 Volts without damage.
|
|
|
|
|
|
Excitation/Transducer Power
|
|
|
|
Voltage (Constant Voltage)
|
|
Programmable from 0.1 to 10.24 Volts with 2.5 mV resolution. Calibrated 1-Volt steps ±0.1%.
|
|
|
|
Current (Constant Voltage)
|
|
50 mA limited to 70 mA maximum.
|
|
|
|
Regulation (Constant Voltage)
|
|
Each channel individually regulated. ±0.01% over input voltage range and no-load to full load.
|
|
|
|
Stability (Constant Voltage)
|
|
±0.01% for 30 days. Temperature coefficient less than ±0.005 %/ºC.
|
|
|
|
Noise (Constant Voltage)
|
|
200 µV peak-to-peak, DC to 10 kHz
|
|
|
|
Monitor (Constant Voltage)
|
|
Excitation voltage or current is read by a program instruction. Accuracy is ±0.2%.
|
|
|
|
Output Range (Constant Current)
|
|
Programmable 0.1 mA to 51.2 mA with 12.5 µA resolution. Calibrated 5 mA steps ±0.1%.
|
|
|
|
Compliance (Constant Current)
|
|
0.1 to 10 V
|
|
|
|
Regulation (Constant Current)
|
|
±0.01% or ±0.1 µA for 10% line change.
|
|
|
|
Noise (Constant Current)
|
|
2 µA or 5 µV peak-to-peak DC to 10 kHz.
|
|
|
|
Stability (Constant Current)
|
|
±0.01% or ±2 µA for 30 days. Temperature coefficient is less than ±0.005% or ±1 µA/ºC.
|
|
|
|
Monitor (Constant Current)
|
|
Excitation voltage or current is read by a program instruction. Accuracy is ±0.2%.
|
|
|
|
|
|
|
|
Range
|
|
±2 mV to ±10 Volts.
|
|
|
|
Gain
|
|
Programmable 1 to 5000, in 1, 2, 3, 5 steps, with ±0.05% accuracy.
|
|
|
|
Gain Stability
|
|
±0.02% for 30 days, ±0.005%/ºC.
|
|
|
|
Linearity (Amplifier)
|
|
±0.01% for gains < 1,000, ±0.02% for gains 1,000 and above.
|
|
|
|
Common Mode
|
|
60 dB plus gain in dB to 120 dB for balanced input and 110 dB for a 350 Ohm source unbalanced, DC to 60Hz.
|
|
|
|
CM Voltage
|
|
±10 Volts
|
|
|
|
Zero (Amplifier)
|
|
Automatic zero to 12 5V RTI or 11.0 mV RTO whichever is greater.
|
|
|
|
Zero Stability
|
|
±5 µV RTI, ±1 mV RTO at constant temperature, ±1 µV RTI/ºC, ±0.2 mV RTO/ºC. Short term: ±2 µV RTI, ±0.4 mV RTO for 8 hours.
|
|
|
|
Source Current
|
|
±5 nA, ±0.05 nA/ºC
|
|
|
|
Noise (10 kHz)
|
|
2.0 5V RTI plus 0.3 mV RTO, RMS.
|
|
|
|
Bandwidth
|
|
6030 - 50 kHz (-3 dB) for gains to 1,000, 20 kHz for gains above 1,000
6030HF - 100 kHz (-3 dB) for gains to 1,000, 50 kHz for gains above 1,000
|
|
|
|
Slew Rate
|
|
5 V/µS
|
|
|
|
Gain Linearity
|
|
±0.01% for gains < 1,000, ±0.02% for gains 1,000 and above.
|
|
|
|
Input Impedance
|
|
50 Megohms, shunted by 500 pF.
|
|
|
|
Input Protection
|
|
150 Volts differential, 130 Volts common mode without damage.
|
|
|
|
Overload Recovery
|
|
Recovery time is 120 µS to within ±0.1% for a 10 times overload to ±10 Volts.
|
|
|
|
|
|
|
|
Type (Standard Filter)
|
|
6030 4-Frequency 8-pole, low-pass Bessel, 150Hz, 525Hz, 2.5kHz, 10kHz.
6030HF 4-Frequency 8-pole, low-pass Bessel, 300Hz, 1.25kHz, 5kHz, 20kHz.
|
|
|
|
Type (Optional Programmable Filter)
|
|
6030-PF10/20K Continuously programmable 4-pole, low-pass Bessel, 10 Hz to 20 kHz.
6030-PF4/10K Continuously programmable 4-pole, low-pass Bessel, 4 Hz to 10 kHz.
|
|
|
|
Other
|
|
Other filter characteristics and cut offs available.
|
|
|
|
Standard Filter
|
|
6030: 4-Frequency 8,Pole Bessel. 150 Hz, 625 Hz, 2.5 kHz, 10 kHz and wideband.
6030HF: 4-Frequency 8, Pole Bessel. 300 Hz, 1.25 kHz, 5 kHz, 20 kHz and wideband.
|
|
|
|
Programmable Filter
|
|
6030: 4-Pole Bessel, continuously programmable from 4 Hz to 1 kHz, 1 Hz resolution, 12% accuracy. 1 kHz to 10 kHz, 5 Hz resolution, 15% accuracy.
6030HF: 4-Pole Bessel, continuously programmable from 10Hz to 20kHz, 5 Hz resolution, 15% accuracy.
|
|
|
|
|
|
|
|
Sample
|
|
±50 nS time correlation channel-to-channel.
|
|
|
|
Resolution
|
|
16-bits, two's complement output.
|
|
|
|
Digitizer Linearity
|
|
±1½ LSB (±0.004%)
|
|
|
|
Continuity
|
|
Monotonic to 15 bits.
|
|
|
|
Alarms
|
|
Two alarms each with upper and lower limits that are programmable from negative to positive full scale. Limits checked on each ADC sample.
|
|
|
|
Rate
|
|
6030: Programmable up to 100 kS/s digitizer per channel.
6030HF: Programmable up to 200 kS/s digitizer per channel.
|
|
|
|
|
|
|
|
Shunt (Standard)
|
|
Two steps, single shunt. Calibration resistors mount in bifurcated terminals. Program selection of internal or external shunt connection.
|
|
|
|
Shunt (Optional)
|
|
Four-step, single, external shunt. Calibration resistors mounted on a plug-in card. May be wired for local shunt at the input connector.
|
|
|
|
Shunt Resistors
|
|
Installed shunt resistors provide 0.502 and 0.250, ±0.1% mV/V for 350 Ohm bridge. Customer specified and 0.01% shunt resistors are available.
|
|
|
|
Voltage (Calibration)
|
|
Alternate input for external calibration source. Programmable 1, 0.1 and 0.01, attenuation with ±0.01% accuracy. Attenuator output may be connected to bus for external monitoring.
|
|
|
|
Zero Calibration
|
|
Amplifier input disconnected and shorted for zero calibration.
|
|
|
|
Voltage Substitution
|
|
Alternate input for external calibration source. Programmable 1, 0.1 and 0.01, attenuation with 10.01% accuracy. Attenuator output may be connected to bus for external monitoring.
|
|
|
|
Shunt Calibration
|
|
Standard: Two steps, single shunt. Calibration resistors mount in bifurcated terminals. Program selection of internal or external shunt connection.
Optional: Four-step, single, external shunt. Calibration resistors mounted on a plug-in card. May be wired for local shunt at the input connector.
Resistors: Installed shunt resistors provide 0.502 and 0.250, 10.1 % mV/V for 350 Ohm bridge. Customer specified and 0.01% shunt resistors are available.
|
|
|
|
|
|
|
|
Mounting
|
|
Occupies one slot in Series 6000 enclosures.
|
|
|
|
Connectors
|
|
Input connectors are 15-pin Type D. Outputs are a 9-pin Type D. Type D mates supplied.
|
|
|
|
Operating Temperature
|
|
0 to +50 ºC
|
|
|
|
Temperature
|
|
0 ºC to +50 ºC operating.
|
|
|
|
|
|
|
|
Sample Rate
|
|
Up to 100 kS/s
Up to 200 kS/s
|
|
|
|
|
|
|
|
IEPE Configuration
|
|
AC-coupled, 2-wire with shield. High-pass < 1 Hz.
|
|
|
|
IEPE Excitation
|
|
Current source 1 to 20 mA, 6 mA supplied
|
|
|
|
IEPE Input Protection
|
|
150 Volts without damage
|
|
|
|
IEPE Input Impedance
|
|
100K Ohms
|
|
|
|
|
|
Voltage Excitation / Transducer Power
|
|
|
|
Voltage Excitation
|
|
Programmable from 0.1 to 10.24 Volts with 2.5mV resolution.
Calibrated 1-Volt steps ±0.1%. 50 mA limited to 70 mA maximum.
|
|
|
|
Voltage Excitation Regulation
|
|
Each channel individually regulated.
10.01% over input voltage range and no-load to full load.
|
|
|
|
Voltage Excitation Stability
|
|
±0.01% for 30 days. Temperature coefficient less than ±0.005%/ºC.
|
|
|
|
Voltage Excitation Noise
|
|
200 5V peak-to-peak, DC to 10 kHz
|
|
|
|
Voltage Monitor
|
|
Excitation voltage or current is read by a program instruction. Accuracy is 10.2%.
|
|
|
|
|
|
Current Excitation / Transducer Power
|
|
|
|
Current Excitation
|
|
Programmable 0.1mA to 51.2 mA with 12.5 5A resolution. Calibrated 5 mA steps 10.1%.
|
|
|
|
Minimum Compliance
|
|
0.1 to 10 Volts
|
|
|
|
Current Regulation
|
|
±0.01% or ±0.1 µA for 10% line change.
|
|
|
|
Current Excitation Noise
|
|
25A or 55V peak-to-peak DC to 10 kHz.
|
|
|
|
Current Stability
|
|
±0.01% or 125A for 30 days. Temperature coefficient is less than ±0.005% or 115A/0C.
|
|
|
|
Current Monitor
|
|
Excitation voltage or current is read by a program instruction.
Accuracy is 10.2%.
|
|
|
|
|
|
|
|
Ordering Information
|
|
6030-PF4-BE8 - 2-Ch Strain-Bridge-IEPE, 4-Freq, 8-Pole Bessel
6030-PF4/10K-BE4 - 2-Ch Strain-Bridge-IEPE, 4-Pole PF 4Hz-10kHz Bessel
6030HF-PF4-BE8 - 2-Ch Strain-Bridge-IEPE, 4-Freq, 8-Pole Bessel
6030HF-PF10/20K-BE4 - 2-Ch Strain-Bridge-IEPE, 4-Pole PF 10Hz- 20kHz Bessel
6030-S4 - 4-Step Shunt Cal Plug-In Resistor Card (no Resistors).
|
|
|
|
|
|
|
|
